SPOON - FULL S-TAI BODYKIT (seperate parts also available)
1) S-TAI BONNET
The SPOON S-Tai Bonnet S2000 AP1 AP2 not only looks good but has been developed under race conditions. The vents allow unwanted heat to be drawn away from the engine bay by the low air pressure area over the bonnet. The hump at the front of the bonnet allows for the larger Spoon S-tai carbon air duct to be installed.
The bonnet can be installed without any modification to the surrounding body. Constructed in GRP and finished in white ready for painting.
2) S-TAI BUMPER [FRONT]
FRP and Carbon Fiber Construction.
Made in Japan.
Includes Fog lamps, covers, wireless remote switch, and carbon fiber front undertray. Does NOT include grill.
The Spoon S-Tai Front Bumper was developed with racing experience since 1999. The bumper is designed to supply cooling to the required regions. Built-in duct opening for the Spoon Fresh Air Duct. The Spoon S-Tai Front Bumper is the culmination of years of experience with Super Taikyu endurance racing and other forms of motorsport. It’s design is inspired by many functional features that are required in racing.
The most obvious features over a factory bumper are the brake and intake ducts. The brake ducts allow for connection to a tube that can provide cooling for the brake system. Maintaining a constant working temperature is essential in the durability of the braking system during endurance racing. The air intake duct provides an opening to connect the optional Spoon Fresh Air Intake Duct to supply fresh cold air to the intake box. Fresh cold air allows the engine to continue running strong during the entire length of a race.
The bumper is longer than the factory front bumper to increase front end down force. However, the height is the same to retain sufficient ground clearance. The curvature of the bottom section channels air cleanly around the front bumper in order to decrease drag.
Included are large bright driving lights that are a necessity during the late night stages of an endurance race and can dramatically increase the road illumination for any driving condition road or track. The lights are covered by a durable polycarbonate lens to protect from cracking and maintain the aerodynamics of the front bumper.
The lights are mounted to the bumper with a weather sealed housing that allow for angle adjustment of the beam to fine tune for any situation. Also included is a complete wiring kit with it’s own fuse and weather sealed connectors for quick and easy bumper removals. The wiring kit also features a wireless remote switch so wires into the cabin aren’t required and the switch can be mounted anywhere the driver prefers.
Another prominent feature of the exterior is the venting duct on the side of the bumper. The venting duct allow for hot air from the engine and radiator that’s trapped in the bumper to be drawn and ducted out to prevent heat soak of the front end.
Something very few aftermarket bumpers retain is the ability to use the factory tow hook instead of requiring an expensive aftermarket solutions. The shape and location of the cut-out allows the use of the factory tow hook cover and tow hook for convenience and ease of use.
Often the most overlooked part of what makes this bumper special is the also the most important. Included with the Spoon S-Tai Front Bumper is a full carbon fiber removable undertray with a honeycomb reinforcement. The addition of the undertray speeds up and diffuses the air underneath the front bumper to increase front end downforce without adding any drag. The undertray is made of full carbon fiber for maximum weight savings. It’s not simply one layer of carbon fiber laid on top of fiberglass for aesthetics like other aftermarket bumpers. The undertray is bolted to the rest of the bumper and removable for ease of access to the underside of the car when mounted or removal during paint. The 2-piece construction is also important in preventing a location for the cracks to occur if something is hit. Other aftermarket bumpers that feature a moulded undertray almost always crack at the seam where the bottom section is bonded to the rest of the bumper. The undertray also features bent edges and a honeycomb reinforcement panel to increase strength and prevent sagging and deflection at speed. Maintaining a stable structure is important in providing a reliable and consistent aerodynamic benefit.
Looking at the back side of the bumper you can see the center section is extended longer to provide a duct to the radiator for more efficient cooling from the air that enters the front of the bumper. And of course the Spoon badge is moulded into the bumper and serial numbered for authenticity.
Lastly, for proper street use, holes and a license plate bracket are included for mounting of a front license plate.
Optional accessories for the Spoon S-Tai Front Bumper are the Front Grill and Fresh Air Duct. The Front Grill protects large road debris from entering the radiator area and damaging the vital cooling system. The fresh air duct is specifically designed to channel cold air in from the bumper cut-out into the factory air box. This carbon Kevlar duct requires the use of the Spoon S-Tai Bonnet or cutting the factory hood to make space for the increased duct size.
3) S-TAI BUMPER [REAR]
Spoon Sports S Tai Rear Bumper is suitable for road and track use, this "aero" bumper offers advanced aerodynamics and a dramatic reduction in weight, with superb styling. Constructed from light weight GFRP, with the optional rear wing and diffuser made from Ultra Lightweight Carbon Fibre. The bumper has been designed for superb aerodynamic efficiency giving greater down force while reduced drag

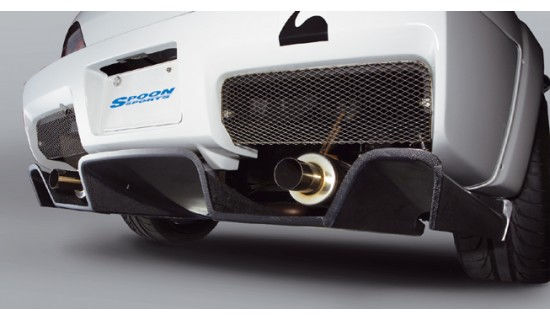

4) S-TAI CARBON DIFFUSER
Fits all S2000 model years. Carbon Fiber Construction. Designed to fit on the S-Tai Rear Bumper but will fit AP1 or AP2 rear bumpers with some modifications.
The Spoon rear diffuser smooth’s airflow underneath the rear bumper to reduce drag and produce downforce.
5) S-TAI CARBON AIR DUCT
The Spoon Engine Fresh Air Duct has been developed for use with the Spoon S-tai bonnet and front bumper. Woking in the same principle as the Spoon Carbon Air Duct, the ducting allows for cold air from a high pressure point on the front bumper to be fed directly in to the air box. The difference between this and the carbon air duct is it utilises the extra space made available by the S-tai bumper and bonnet to give an unrestricted flow of air to the all-important air box.
6) FENDER [REAR]
Fits all S2000 model years. FRP Construction. Widens rear end by 25mm.
Finished in white and ready to paint
7) WIDE FENDER [FRONT]
Fits all S2000 model years. FRP Construction. Widens front end by 20mm. Includes flare attachments for front bumper.
Finished in white and ready to paint.
8) 3DGT WING
Spoon Sports Carbon Fiber GT 3D Wing has been developed and honed under endurance racing conditions to develops a significant amount of downforce to increase rear end stability and grip.
Width is 1500mm and stands are 300mm +/- 10mm
Come with all bolts and brackets needed for installation.
